Start your construction plansMany residential, commercial, farm, industrial and health care buildings have started with a vision like yours, and then quickly became reality with Construction-Drawing.com.
ClientsPrivate and public owners, building committees, contractors, lumberyards, carpenters, tradesmen and engineers have all engaged Construction-Drawing.com for their building permit drawing needs.
Professional DesignersProfessional designers (i.e. an architects or engineers) can review your proposed design drawings prepared by Construction-Drawing.com. The Manitoba Building Code (based on the National Building Code), the local building authority or you determine this requirement.
Engineering TechnologistConstruction-Drawing.com owner René Dupuis, Structural Engineering Technologist since 1990, has a good rapport with architects and engineers practicing throughout Winnipeg, Manitoba and Canada.
PricingCompare the complexity of your project to the sample drawings shown to estimate your drawing order costs.
Floor Plan shown
$188 without garage
Standard 2D Elevations shown plus

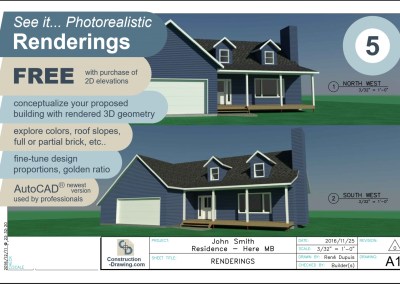

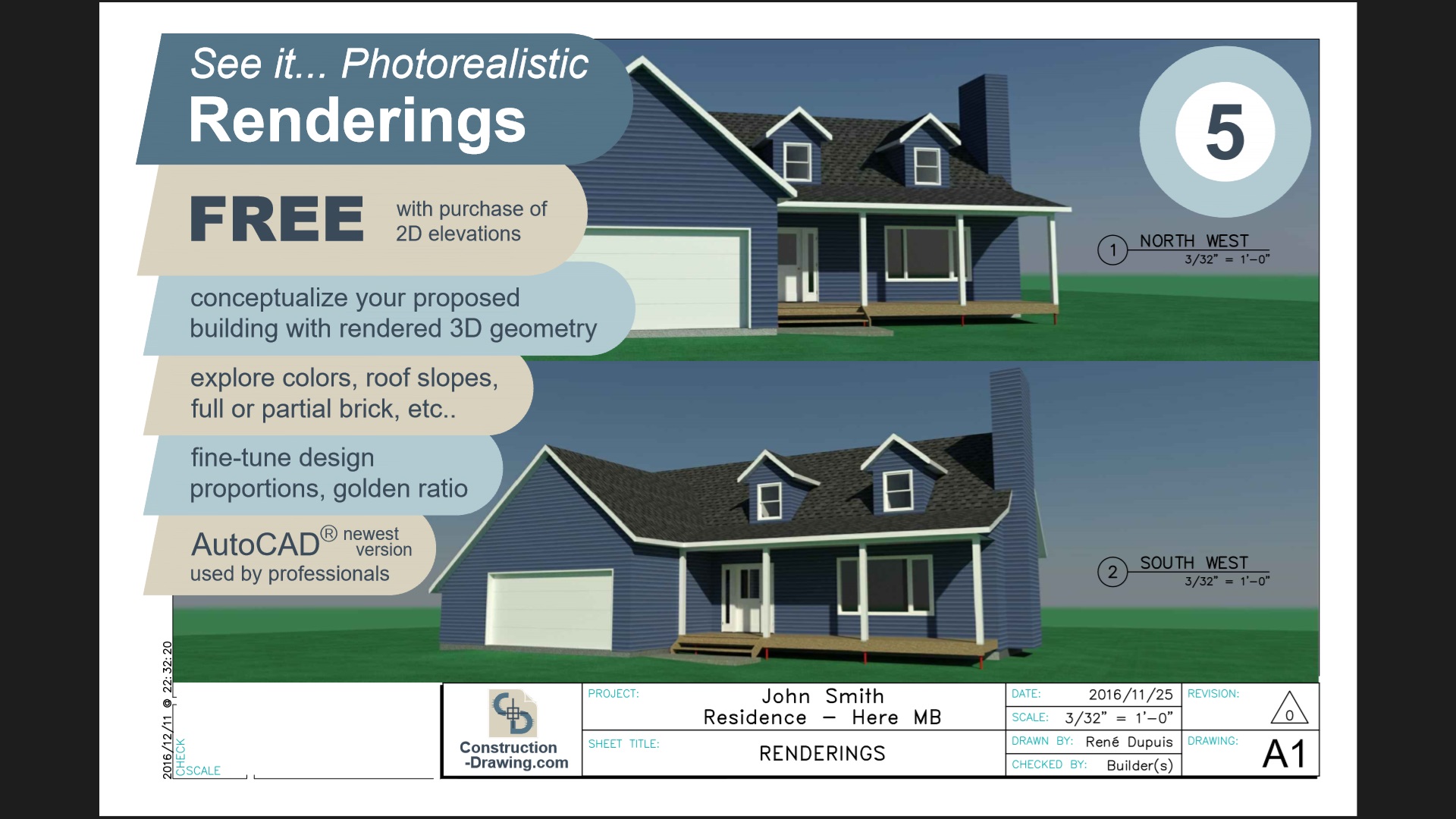

Free realistic renderings *
$111 * without garage
* After purchasing a Floor Plan, when Floor Plan is not ordered price adjustment is required.
Foundation & Framing
Foundation Plan and Sections shown
$188 * without garage
* After purchasing a Floor Plan & Elevations, when a Floor Plan & Elevations are not ordered price adjustment is required.
Other ServicesEngineering – Prices are not set by construction-drawing.com. Contact us for your options. Free 1 hour consultation (by phone or email) with every order. Then $39/hour. Interior Renderings – $88 first camera shot (baseboards included). $49 additional camera shots. $19 per light source. Floor plans and elevations must have been purchased to get prices shown. A detailed kitchen plan and custom furniture may also be required for more realistic rendering.
OrderProvide details of your project for “ballpark” or “price range” costs. When “ballpark” or “price range” costs are not adequate fixed quotes are available. These fixed quotes are $39 per $500 of new construction drawings (or per $250 of renovation drawings).
Floor PlanProvide details of your project for “ballpark” or “price range” costs see the following checklist
Important walls ?
Show all exterior walls with proposed dimension based on budget and lot zoning rules. Show major room sizes: living dining kitchen and bedrooms
Door locations ?
Show door locations. Optional except for exterior doors. Layout doors based on traffic flow. Show door swings.Optional. Show door widths. Optional.
Stairs, Floors & Ceiling ?
Show stair locations. show changes in floor elevations (ie sunken living room or garage floor). Show ceiling variations from standard 8′. indicate vaulted ceilings.
Kitchen, baths & furniture ?
Show kitchen counter locations. Optional. Show fridge stove sink and dishwasher. Optional. You can get kitchen planning when you order cabinets but setting these items is recommended for windows over sinks, mechanical & electrical rough-in etc. Show or indicate bathroom fixtures: WC=watercloset, S=sink, & T= tub Show washer dryer (W D). show any other furniture you would like to plan for.
Send in your elevation sketch sketch (sample and checklist below). ←Order Elevations consist of sloping roof planes, overhangs, gables (+returns), walls heights (truss heel, stud, floor, basement windows, grade), floor/siding levels, wall finishes (siding, stucco, brick), doors, windows (+custom), stairs (runs), decks, railings, structure (beams, columns), 3D viewpoints …
Send us your proposed Floor Plan and/or Elevations sketches to order drawings.
Choose your general system(s) according to building code, builder(s) preferences (checklist below). Construction-Drawing.com can make assumptions on the builder(s) behalf. The engineer has to approve the system(s) when sealed drawings are required. ←Order Roof(s) (sheathing -type -size, trusses -spacing, rafters -type -size, insulation -batts or blown-in -R value, strapping -type -spacing, drywall -type -size) Wall(s) (cladding -vinyl -stucco -standard masonry -surface mount masonry) Floor(s) (framing system, insulation, …)
Choose your foundation / framing system(s) according to building code, builder(s) preferences (checklist below). Construction-Drawing.com can make assumptions on the builder(s) behalf. The engineer has to approve the system(s) when sealed drawings are required. ←Order Structural systems: Basements (footing -size -rebar -dowels -frost protection, form type -ICF courses with tapers, wall -size -rebar -anchors -dowels -insulation) Garages (foundation unit -pile -pad/pier -belled pile with form -concrete wall -frostprotection, beam -size -rebar -anchors -dowels -insulation, slab -structure or grade supported -size -rebar -insulation, support @ basement -thickened edge size -rebar -dowels -support PWF wall or piers to basement footing) Decks (foundation unit -pile -pad/pier -belled pile with form -frostprotection -roof support, beam -type -size, joist -type -size) Framed Floors (telepost -locations, beam -type -size, joists -2x lumber -engineered joist -wood trusses of various types, sheathing -size) ←General Systems
